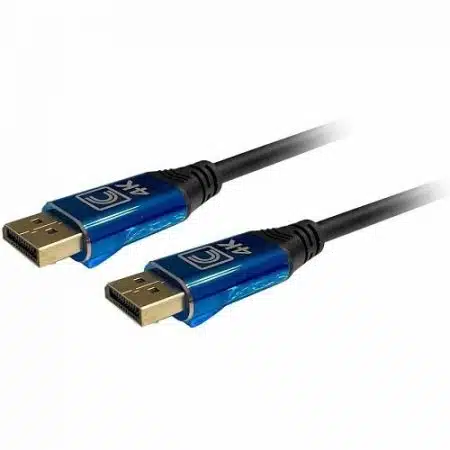

Comprehensive DP-4K-6SP Specialist Series 4K Displayport 1.2a Cable,
Designed for on-site AV/IT use and light integration in higher education, K12, SMB and other commercial environments
Up to 2X more durable and reliable than standard cables
Supports 4096 x 2160 at 60Hz resolution with a maximum HBR2 bandwidth and 21.6 Gbps speed; this allows for full 4K resolution on all compatible DP 1.2a enabled 4K
$19.23
Product Overview
Specialist Series Cables are specifically made for the day to day demands in enterprise, education and other commercial environments and are up to 2X more durable than Standard cables. Specialist Series Cables use superior components through-out including copper and aluminum shielding, a specially formulated PVC jacket, enhanced strain relief and a durable machined aluminum (or ABS) connector head for high performance and to ensure that your AV/IT set up is always up and running.
Main Features
- Designed for on-site AV/IT use and light integration in higher education, K12, SMB and other commercial environments
- Up to 2X more durable and reliable than standard cables
- Supports 4096 x 2160 at 60Hz resolution with a maximum HBR2 bandwidth and 21.6 Gbps speed; this allows for full 4K resolution on all compatible DP 1.2a enabled 4K monitors
- 21.6 Gbps Max Bandwidth with up to 17.28 Gbps data speed
- Locking latches ensure cables always stay connected until released
- Supports Multi-Stream Transport (MST) for daisy-chaining multiple monitors
- High-Bandwidth Digital Content Protection (HDCP 2.2) and DisplayPort Content Protection (DPCP) for a secure connection between source and display
- Backwards compatible support for DP 1.2 and 1.1
- Up to 32 audio channels (LPCM) and 21:9 aspect ratio
- Multi-Stream Audio (up to 4)
| Specifications | |||||||||||||||||
| Part Number | DP-4K-6SP | Product Line | Pro AV/IT Specialist | Product Model | DP-4K-6SP | Product Name | Pro AV/IT Specialist Series 4K Displayport 1.2a Cable 6ft | Product Series | Specialist | Product Type | A/V Cable | ||||||
| Technical Information | |||||||||||||||||
| American Wire Gauge | 30AWG | Cable Type | DisplayPort | Connector on First End | DisplayPort Male | Connector on Second End | DisplayPort Male | Connector Plating | Gold | Device Supported | Audio/Video Device, Monitor | Jacket Material | PVC | Shielding | Yes | Supported Resolution | 4096 x 2160 |
| Interfaces/Ports | |||||||||||||||||
| Connector Type | RJ-45 | ||||||||||||||||
| Media & Performance | |||||||||||||||||
| Data Transfer Rate | 21.6 Gbit/s | ||||||||||||||||
| Physical Characteristics | |||||||||||||||||
| Cable Length | 6' | Color | Black | Color Family | Black | Package Type | Bag | Product Color | Jet Black | Product Material | Tinned Copper | Weight (Approximate) | 0.45 lb | ||||
| Warranty | |||||||||||||||||
| Limited Warranty | Lifetime | ||||||||||||||||
| Miscellaneous | |||||||||||||||||
| Environmental Certification | RoHS | Environmentally Friendly | Yes | Features | Consumer Electronics Control (CEC), DPCP, DTS-HD Master Audio, Enhanced Audio Return Channel (eARC), HDCP, HDCP 2.2, Latching Connector, Locking Latch, Molded, Multi-Stream Transport (MST) Support | ||||||||||||
| Weight | 3 lbs |
|---|
