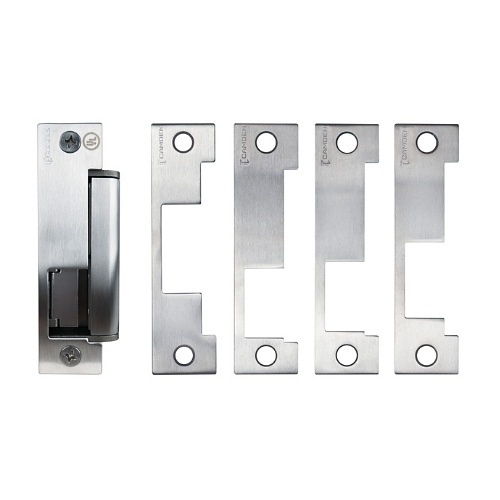

Camden CX-ED1689L-4 All-in-One Electric Strike with
Grade 1 fire rated strikes with dual lock monitors and strike monitor, additional shim plates in strike cavity
For mortise and cylindrical locksets
A range of strike and faceplate packages for latchbolts and
$437.97
Product Overview
Camden’s CX-ED1689L-4 and CX-ED1799L-8 Grade 1 electric strikes for mortise and cylindrical locksets offer the very best strike quality and features, with the added value of built-in latch monitoring and ‘universal’ performance.CX-ED1689L-4 is packaged with (4) stainless steel faceplates. Feature field selectable voltage (12/24V, AC/ DC), fail safe or fail secure operation, and are non-handed.
Main Features
- Grade 1 fire rated strikes with dual lock monitors and strike monitor, additional shim plates in strike cavity
- For mortise and cylindrical locksets
- A range of strike and faceplate packages for latchbolts and deadbolts
- Faceplates also available in black architectural finish (BHMA 622, US19)
- Selectable fail safe / fail secure
- Selectable 12/24V AC/DC
- 1 or 2 latch and deadbolt monitoring switches
- Magnetic door position switch
- Strike power monitor
- Easy fit connectors
| Specifications | |||||||||||||||||||
| Part Number | CX-ED1689L-4 | Product Model | CX-ED1689L-4 | Product Name | CX-ED1689L-4 Electric Strike | Product Type | Electric Strike | ||||||||||||
| Technical Information | |||||||||||||||||||
| Compatible Door Frame Type | Metal, Wood | Compatible Door Lock Type | Cylindrical, Mortise | Door Handling | Non Handed | Duty Cycle | 1500000 | Electric Strike Assembly | Body with Faceplate | Holding Strength | 1500 lb | Security Configuration | Fail Safe, Fail Secure | ||||||
| Physical Characteristics | |||||||||||||||||||
| Application/Usage | Door Lock, Fire Door | Color | Silver | Color Family | Silver | Faceplate Depth | 1.41" | Faceplate Height | 4.88" | Faceplate Width | 1.61" | Product Material | Stainless Steel | Strike Depth | 1.42" | Strike Height | 4.88" | Strike Width | 1.61" |
| Power Description | |||||||||||||||||||
| Input Current | 150 mA, 300 mA | Input Voltage | 12V DC, 24V DC | Power Source | DC Supply | ||||||||||||||
| Warranty | |||||||||||||||||||
| Limited Warranty | 5 Year | ||||||||||||||||||
| Miscellaneous | |||||||||||||||||||
| Features | Fail Safe, Fail Secure, Fit Connectors | Package Contents | CX-ED1689L-4 Electric Strike | ||||||||||||||||
| 4 x Stainless Steel Faceplates | |||||||||||||||||||
| 2 x Monitors | |||||||||||||||||||
| Weight | 3 lbs |
|---|
