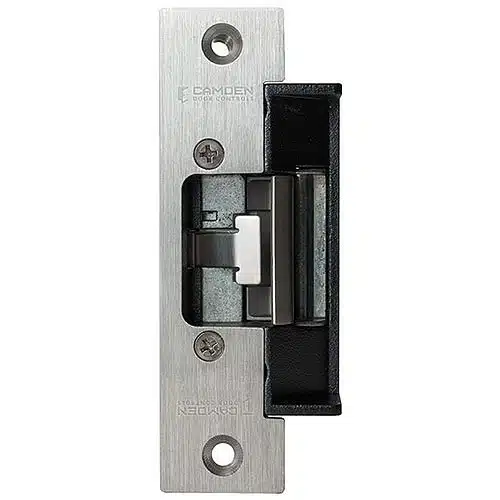

Camden CX-ED1079L Low Profile Grade Universal Electric Strike, 12/24VAC/DC, with Latching
Centerline latch entry for cylindrical and mortise locksets.
CX-ED1079, low profile. 1/2″ to 5/8″ latch projection (throw)
CX-ED1079D, Std. Depth. 5/8″ to 3/4″ latch projection
$250.00
Product Overview
The CX-ED1079 (low profile, for 5/8″ latch projection) and CX-ED1079D (standard depth, for 3/4″ latch projection) ‘Universal’ grade 1 ANSI strikes offer ‘Universal’ performance with selectable 12/24V AC/DC and fail safe/fail secure operation, and have horizontal faceplate/body adjustment.
Main Features
- Centerline latch entry for cylindrical and mortise locksets.
- CX-ED1079, low profile. 1/2″ to 5/8″ latch projection (throw)
- CX-ED1079D, Std. Depth. 5/8″ to 3/4″ latch projection (throw)
- Selectable 12/24V AC/DC
- Selectable fail safe/fail secure operation
- Horizontal adjustability of strike faceplate/body
- 3 stainless steel faceplates included: ANSI square, hollow metal and wood door frame
- Continuous duty operation
- Non-handed
- 5 year warranty
| Specifications | |||||||||||
| Part Number | CX-ED1079L | Product Model | CX-ED1079L | Product Name | CX-ED1079L Electric Strike | Product Series | CX-ED1079 | Product Type | Locking | ||
| Technical Information | |||||||||||
| Compatible Door Lock Type | Cylindrical, Mortise | Door Handling | Non Handed | Duty Cycle | 250000 | Electric Strike Assembly | Body with Faceplate | Holding Strength | 1500 lb | Security Configuration | Fail Safe, Fail Secure |
| Physical Characteristics | |||||||||||
| Color | Silver | Faceplate Height | 4.88" | Faceplate Width | 1.25" | Product Material | Stainless Steel | ||||
| Power Description | |||||||||||
| Input Current | 150 mA, 260 mA | Input Voltage | 12V AC, 12V DC, 24V AC, 24V DC | ||||||||
| Warranty | |||||||||||
| Limited Warranty | 5 Year | ||||||||||
| Miscellaneous | |||||||||||
| Features | Latch Monitoring | Package Contents | CX-ED1079L Electric Strike | ||||||||
| 3 x Stainless Steel Faceplates(ANSI square, hollow metal and wood door frame) | |||||||||||
| Weight | 2 lbs |
|---|
