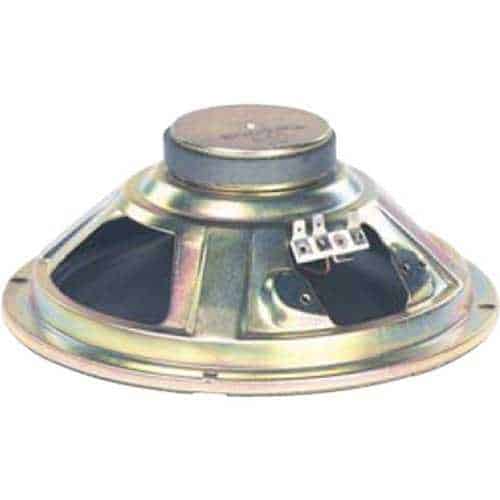

Bogen S86T725 8″ Loudspeaker with T725
4-watt capacity
8″ cone speaker for excellent audio quality
6 different power taps available (4, 2, 1, 1/2, 1/4, 1/8
$22.49
Product Overview
Bogen’s Ceiling Speaker Assemblies consist of an 8″ Cone Speaker (S86 or S810) pre-assembled onto a 13″ steel ceiling grille painted with off-white (PG8W) or bright white (PG8U) enamel. Options for these assemblies are recessed volume control (VR), volume control with knob (VK), and rear-mounted screw terminal strip for power taps (BR).
Main Features
- 4-watt capacity
- 8″ cone speaker for excellent audio quality
- 6 different power taps available (4, 2, 1, 1/2, 1/4, 1/8 W)
- T725 4-watt transformer
- Off-white enamel over steel grille (“W” versions)
- Bright white enamel over steel grille (“U” versions)
- Pre-assembled for faster installation
- Works with both 70V and 25V amplifier outputs
- Available with volume control – recessed or with knob (VR and VK models only)
- 6 oz. or 10 oz. magnet weights
| Part Number | S86T725 | Product Model | S86T725 | Product Name | S86T725 Speaker | Product Series | S86 SERIES | Product Type | Speaker | ||||
| Technical Information | |||||||||||||
| Crossover Type | 1-way | Impedance | 8 ohms | Impedance (Ohm) | 8 | Maximum Frequency Response (Hz) | 12000 | Minimum Frequency Response (Hz) | 50 | Speaker Size | 8" | Wireless Speaker | No |
| Audio | |||||||||||||
| Maximum Frequency Response | 12 kHz | Minimum Frequency Response | 50 Hz | Number of Speakers | 1 | Shipping Weight (Approximate) (g) | 725.748 | ||||||
| Physical Characteristics | |||||||||||||
| Color | White | Depth | 3.25" | Depth (mm) | 82.55 | Form Factor | Ceiling Mount | Speaker Installation | Indoor|Outdoor | ||||
| Weight | 1 lbs |
|---|
