Home›Access Control›BEA Sensors 10MS42-SL Stainless steel, single gang – “WAVE TO LOCK” text + hand logo

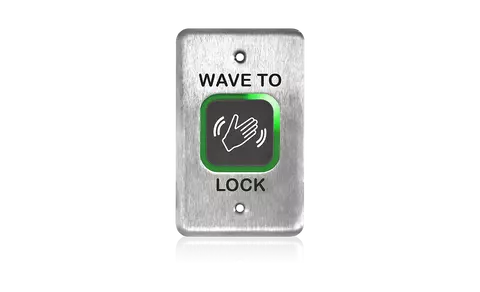

BEA Sensors 10MS42-SL Stainless steel, single gang – “WAVE TO LOCK” text + hand logo
$376.92
Buy Now
Stainless steel, single gang – “WAVE TO LOCK” text + hand logo
| Technology |
microwave motion sensor |
| Detection mode |
motion (bidirectional) |
| Detection range |
4 – 24" (adjustable) |
| Product temperature range |
-4 – 131 ° F (-20 – 55 ° C) |
| Output hold time |
0.5 sec (in PULSE mode) |
| Speed of target to create detection |
5 Hz (min) or ±1 in/s
200 Hz (max) or ±3 ft/s |
| Supply voltage* |
12 – 24 VAC ±10%
12 – 24 VDC +30% / -10% |
| Supply frequency |
50 – 60 Hz |
| Radiated frequency |
24.150 GHz |
| Radiated power |
< 20 dBm EIRP |
| Radiated power density |
< 5 mW/cm2 |
| Power consumption |
< 1.5W |
| Output*
max. voltage
max. current
max. switching power |
Electronic relay (galvanic isolation - polarity
free)
42 VDC / 30 VAC
100 mA
15 W |
| Cable |
Stranded cable up to 16 AWG - 1.5mm2 |
| IP rating |
IP55 (apply silicone to sensor housing base to achieve IP65) |
| Certification |
Electromagnetic compatibility (EMC) according to 2004/108/EC
FCC: G9B-210161
IC: 4680A-210161 |
