Home›Access Control›BEA Sensors 10MS41-DPAL Stainless steel double gang – accessibility logo only

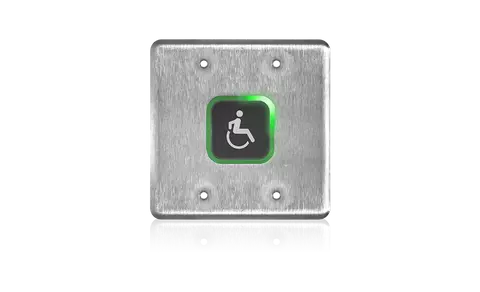

BEA Sensors 10MS41-DPAL Stainless steel double gang – accessibility logo only
$391.64
Buy Now
Stainless steel double gang – accessibility logo only
| Technology |
microwave |
| Detection Mode |
Motion (bidirectional) |
| Detection Range |
4 – 24” (adjustable) |
| Temperature Range |
-4 – 131 °F (-20 – 55 °C) |
| Output Hold Time |
0.5 – 30 sec |
| Supply Voltage* |
12 – 24 VAC ±10%
12 – 24 VDC +30% / -10% |
| Supply Frequency |
50 – 60 Hz |
| Radiated frequency |
24.125 GHz |
| Radiated power density |
< 5 mW/cm2 |
| Power Consumption |
< 1.5 W |
| Output
relay contact rating (max. voltage)
relay contact rating (max. current)
max. switching power |
Relay with switch-over contact (voltage-free)
60 VDC / 125 VAC
1A (resistive)
30W DC / 60 VAC |
| Wire Gauge |
26 – 22 AWG |
| Weight |
0.34 lbs |
| IP Rating |
IP55 (apply silicone to sensor housing base to achieve IP65) |
| Certification |
Electromagnetic compatibility (EMC) according to 2004/108/EC
FCC: G9B-210161
IC: 4680A-210161 |
All products in the Bargain Bin are final sale and are sold as is. No returns or exchanges are available for Bargain Bin items.
