Multi-purpose infrared sensor, surface mounted, 2 to 8′ detection range, 12 to 24 V AC/DC
| 10FOCUS / 10FOCUS2 | |
|---|---|
| TECHNOLOGY | Focused Active Infrared |
| DETECTION MODE | Presence |
| POWER SUPPLY | 24 VAC / VDC ±10% |
| CURRENT CONSUMPTION | 60 mA (On); 30 mA (Off) |
| OUTPUT INTERFACE; RELAY | Relay; max. contact rating is 1 A @ 30 V (resistive) |
| DETECTION RANGE | 0 – 8 1⁄5’ |
| DISTANCE ADJUSTMENT | 2 – 8’, rotating cam with linear adjustment |
| DETECTION TIME | < 50 ms |
| DETECTION SIGNAL DURATION | Infinite Presence Detection |
| LED INDICATOR GREEN | Detection |
| OPERATING TEMPERATURE RANGE | -30 – 140 °F |
| CONNECTION TO CONTROLLER | 5-conductor cable |
| DETECTION MODE | NO or NC |

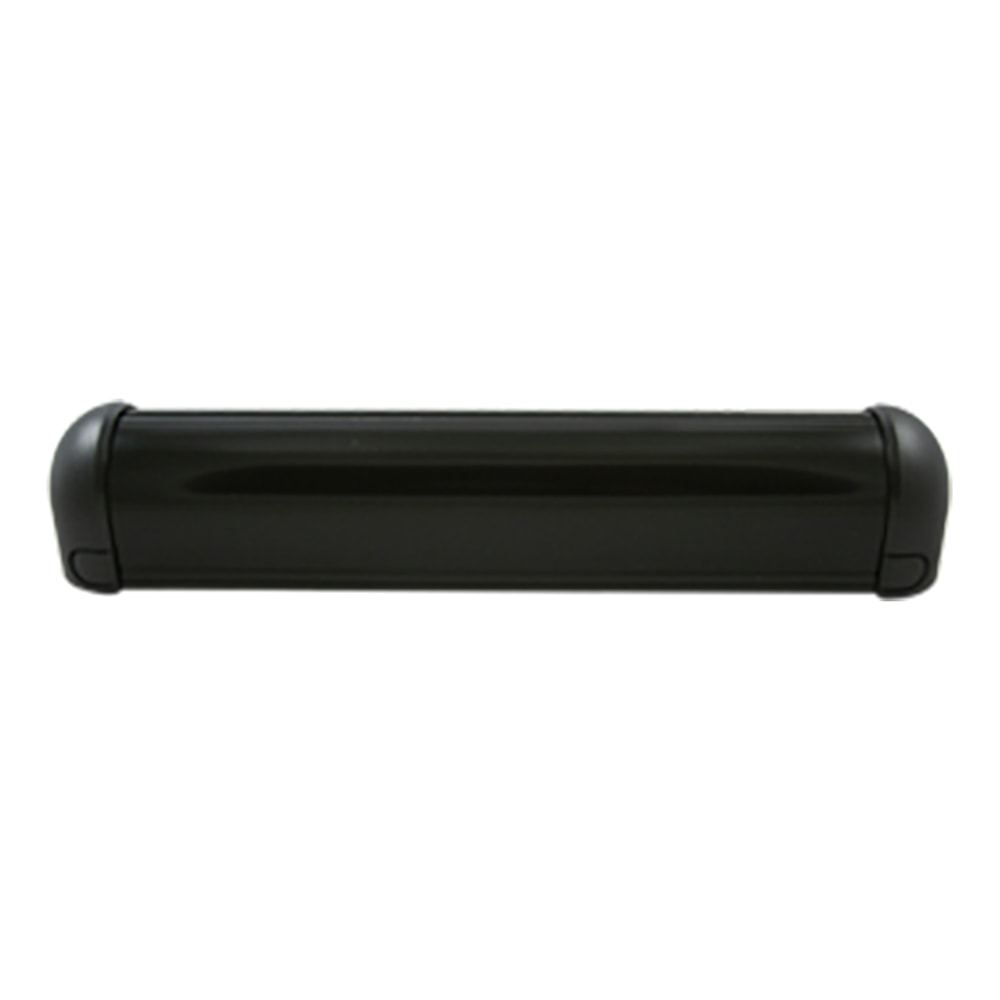

This item: 10FOCUS BEA Motion Sensor
$348.45
