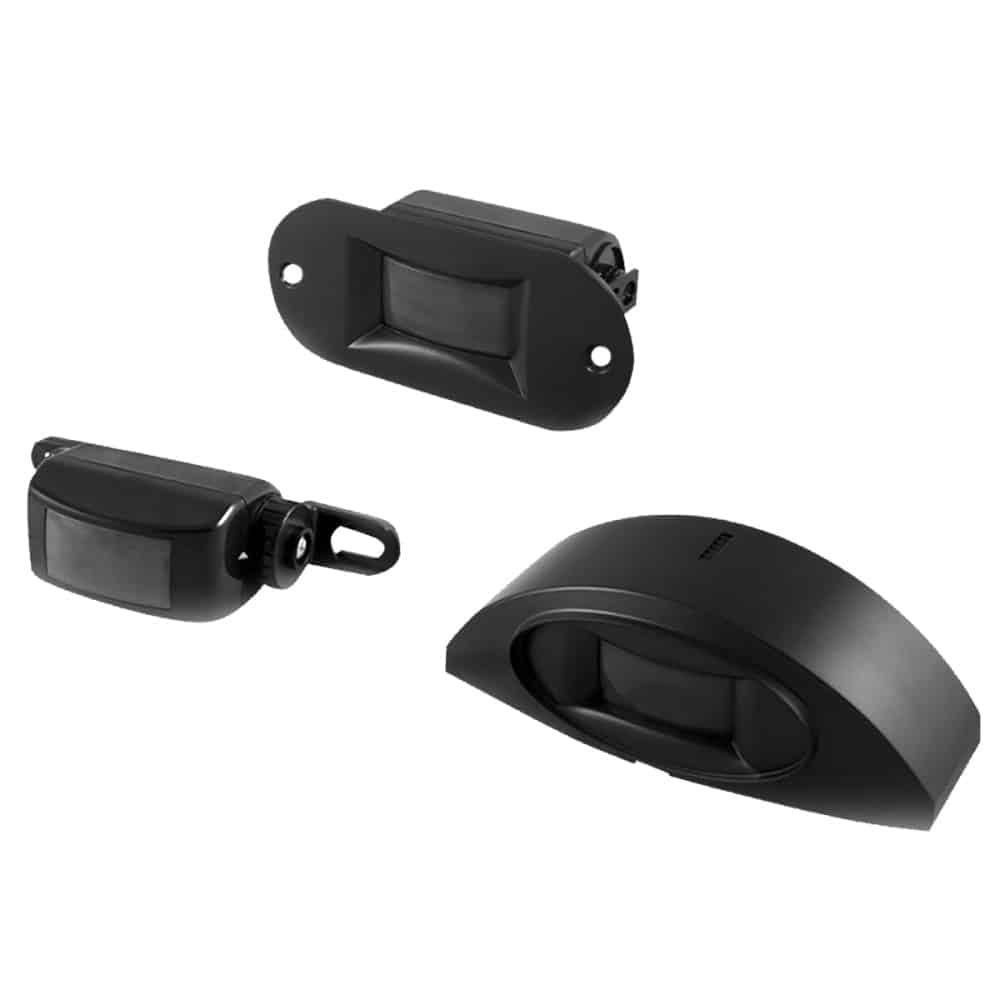

Passive infrared sensor, field adjustable detection zone, 0 to 180 degree mounting angle, 12 to 24 V AC/DC
| TECHNOLOGY | Passive Infrared with microprocessor |
|---|---|
| MOUNTING HEIGHT RECOMMENDED MAXIMUM | 6 ½ – 8’ 10’ |
| MOUNTING ANGLES | 0 – 180° |
| POWER SUPPLY | 12 – 24 VAC; ±10% (50 / 60 Hz) 12 – 24 VDC; −10% / 30% |
| CURRENT CONSUMPTION | < 10 mA (20 mA if the relay output is activated) |
| CONTACT RATING | 1 A / 75 VDC or 50 VAC potential free contact NO / NC |
| OPTICAL CHARACTERISTICS | Passive infrared with four elements 15 Fresnel lenses with full independent masking possibilities |
| WARM-UP TIME | 10 s |
| RESPONSE TIME MAXIMUM | 200 ms |
| RELAY HOLD TIME STANDARD FLY FLY EXTENDED RELAY TIME | 0.5 or 2 s 15 or 30 s |
| OPERATING TEMPERATURE | -22 – 140 °F (-30 – 55 °C) |
| CABLE | 9’ 4-conductor cable with 5-pin connector |
| WEIGHT | 1.4 oz (40 g) |
| SENSOR DIMENSIONS | 4” (W) × 1 4⁄5” (H) × 1” (D) |
| HOUSING COLOR | Black |
