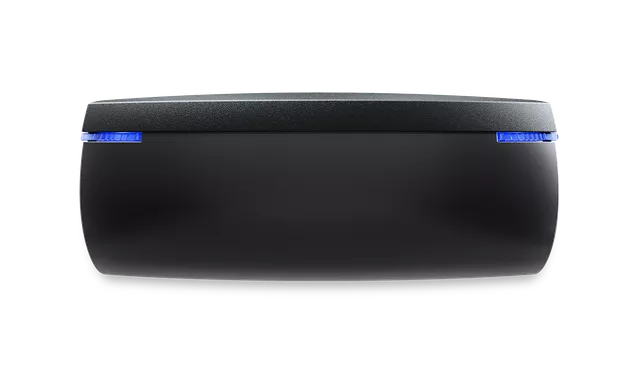

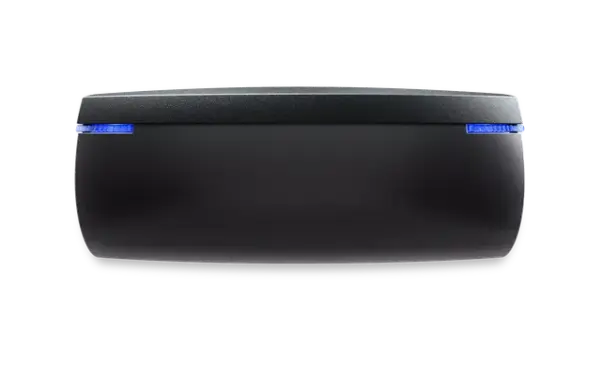

BEA Sensors 10EAGLEARTEK Microwave motion sensor

• Technology: Microwave

• Detection mode: Motion

• Transmitter frequency: 24.15 GHz

• Transmitter radiated power: < 20 dBm EIRP

• Transmitter power density: < 5 mW/cm²

• Max. detection range:

  • Wide: 13’ × 6.5’

  • Narrow: 6.5’ × 7’ (@ 7’ high)

• Min. detection speed: 2 in/s

Electrical

• Supply voltage*:

  • 12 – 24 VAC ±10% (50 – 60 Hz)

  • 12 – 24 VDC +30% / -10%

• Max. power consumption: < 1 W

• Output*: Solid-state relay (free of polarity)

  • Max. switching voltage: 30 VAC / 42 VDC

  • Max. switching current: 100mA (resistive)

Physical

• Mounting height: 6’ – 13’

• Tilt angles:

  • 0 – 90° vertical

  • -30 – 30° lateral

• Temperature range: -4 – 131 °F (-20 – 55 °C)

• Dimensions: 4.72” (L) × 1.96” (H) × 1.96” (W)

• Material: ABS

• Weight: 120 g

• Cable length: 8’

Compliance

• Degree of protection: IP54

• FCC certification:

  • FCC: G9B-100606

  • IC: 4680A-100606
