Product Overview
Altronix AL624 power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC output. This general purpose power supply has a wide range of applications for access control, security, and CCTV system accessories that require additional power.
Main Features
16V AC to 24V AC, 20VA to 40VA
Output: 6V DC or 12V DC 1.2A supply current or 24V DC 0.75A supply current
Filtered and electronically regulated output
Short circuit and thermal overload protection
Built-in charger for sealed lead acid or gel type batteries
Automatic switch over to stand-by battery when AC fails
PTC battery protection
AC input and DC output LED indicators
General Information
Name: Altronix AL624 Linear Power Supply Charger, Single Class Output, 6/12/24VDC at 1.2A, 16 to 24VAC, Board, Altronix Corporation, Altronix
Category: Altronix, Access Control, Batteries & Power Supplies, Power Products, Power Supplies & Boards, Power Supplies, Power Supplies
UPC Code: 782239931224
Country of Origin: United States. Country of origin is subject to

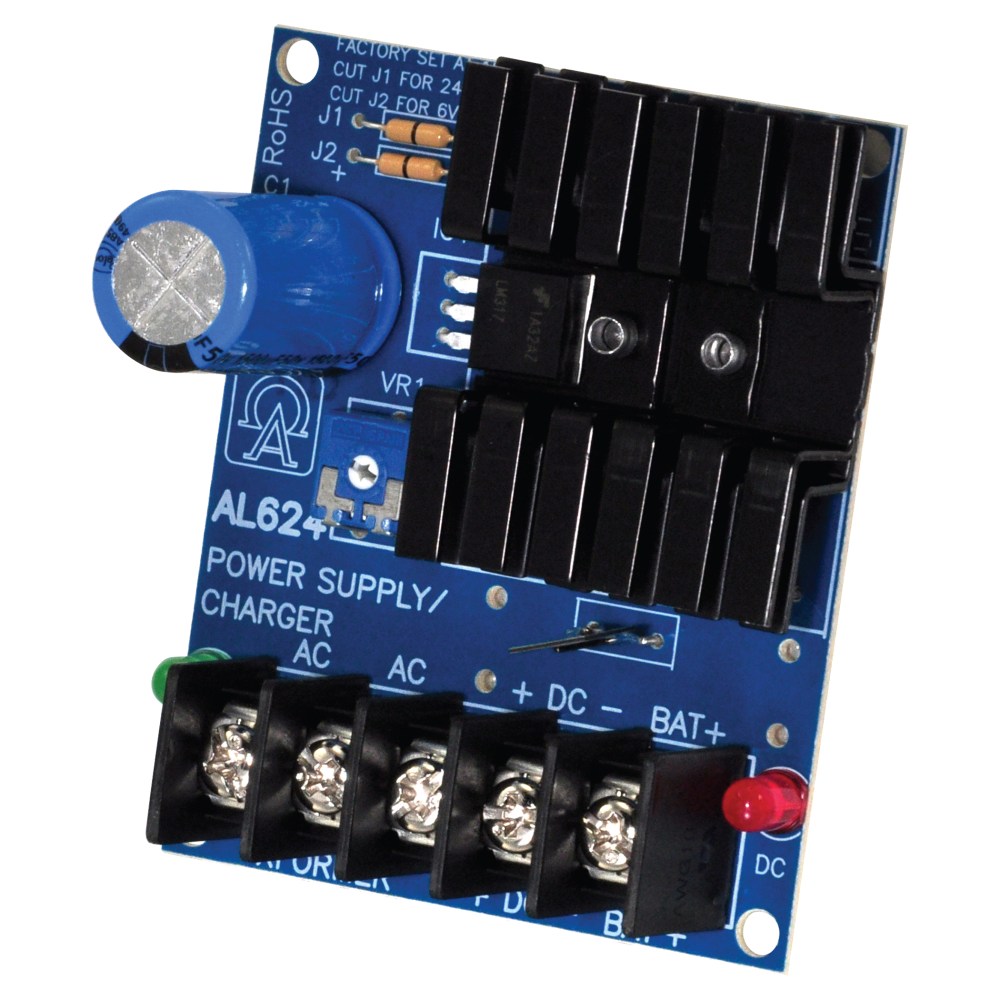

AL624 Altronix Power Supply
Linear Power Supply Board, Input 16VAC to 24VAC, 20VA to 40VA, Single Selectable Output, 6/12VDC at 1.2A or 24VDC at 0.75A
$23.21
Buy Now
