Product Overview
Bracket mounted, single magnetic lock with 600 lbs holding force that can be easily installed without special tools and used with any access control system. Ideal for high-use areas for traffic control in interior applications. Available with LED, bond sensor and door status signalling options.
Features
Standard Features
600S Standard model
600L Magnetic lock with red LED status indicator
600LB Magnetic lock with red LED status indicator, bond sensor, and door status sensor
Built-in arc suppression
Instant release, no hysteresis
Self-drilling TEC screws
Non-aluminum parts are plated to resist corrosion
E-Z mount header bracket and template provided for easy installation, no special tools required
Can be used with any access control system
Clear anodized (US28) finish standard
Limited lifetime warranty
Options
DURO Duranodic finish (US 40) available, specify when ordering
Dress covers in polished chrome and brass available. See “Magnetic LockAccessories” for options.
Specifications
Certifications & Listings
UL 294 listed
UL 10C fire rated
CAN/ULC-S104 fire door conformant
UL 864 listed
CAN/ULC-S527 listed
Holding Force: 600 lbs
Dimensions:
Magnet size: 9-7/8″ L x 1-11/16″ H x 1″ W
Armature size: 7-1/4″ L x 1-1/2″ H x 1/2″ W
Electrical
12 or 24 VDC, field selectable
Current draw: 505 mA at 12 VDC, 260 mA at 24 VDC
600LB bond sensor has SPDT 3A relay contacts
Operating Temperature: +14 to +131F [-10 to +55C]
Main Features
Built-in arc suppression
Instant release, no hysteresis
Self-drilling TEC screws
Instant release, no hysteresis
E-Z mount system, no special tools required
General Information

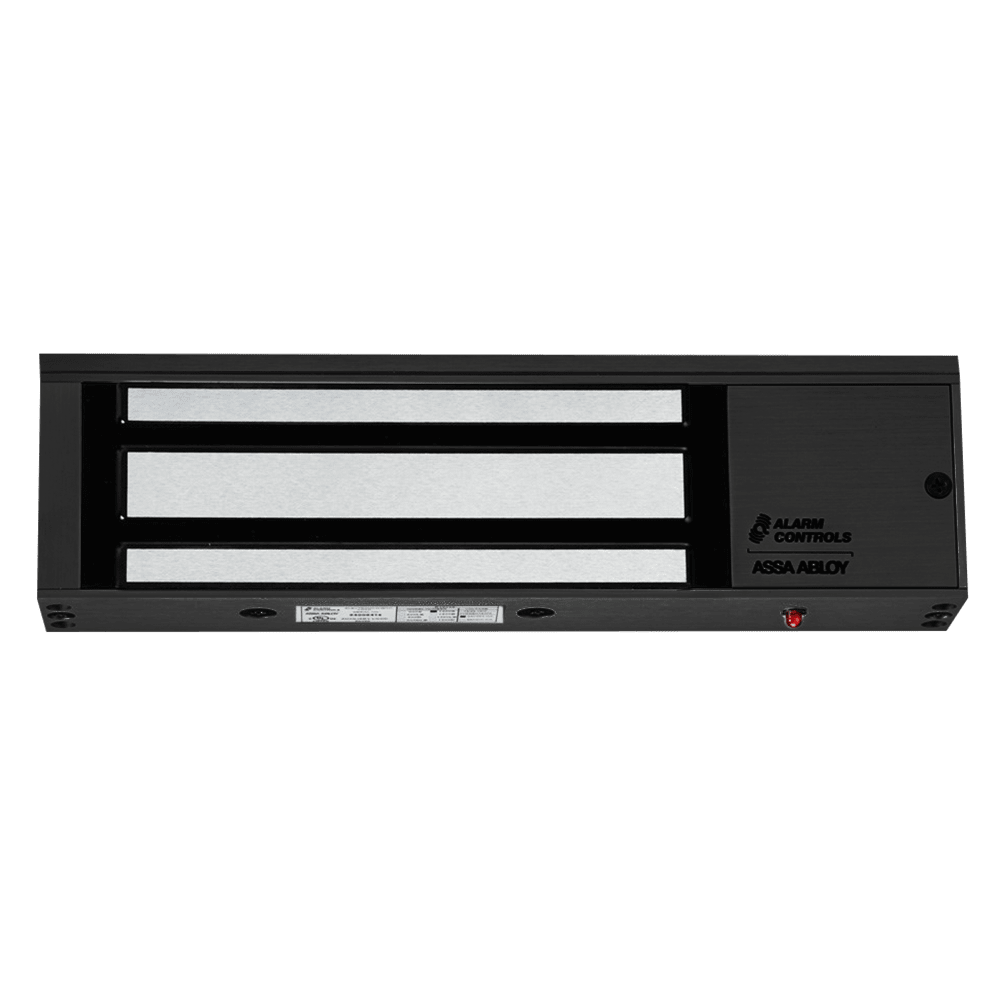

Name: Alarm Controls 600LB Single Magnetic Lock with Red LED Status Indicator, Bond Sensor and Door Status Sensor, Clear Anodized, ASSA ABLOY, Alarm Controls by ASSA ABLOY
Category: Alarm Controls by ASSA ABLOY, Access Control, Locking Devices, Magnetic Locks
UPC Code: 604840236379
Country of Origin: China. Country of origin is subject to
