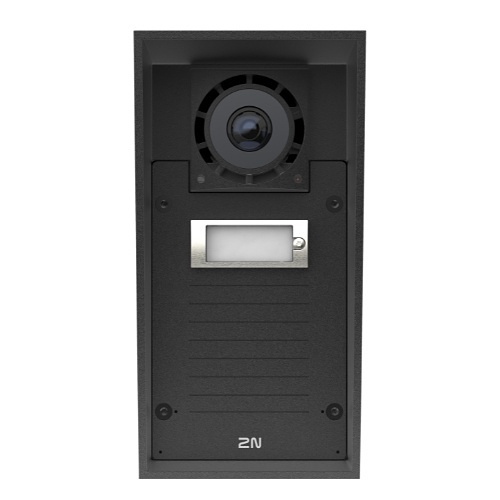

2N 01337-001 IP force 1-Button with HD Camera, Durable IP

Signalling Protocol

• Supported: SIP (UDP, TCP, TLS)

Button

• Design: Transparent, white backlit buttons with easily replaceable label

• Count: 1, 2, or 4 buttons

• Numerical Keypad: Optional

Audio

• Microphone: 2 integrated microphones

• Amplifier: 10 W (class D)

• Speaker: 10 W

• Volume Control: Adjustable with automatic adaptive mode

• Full Duplex: Yes (AEC)

Audio Stream

• Protocols: RTP/RTSP

• Codecs: G.711, G.722, G.729, L16/16kHz

Camera HD

• Sensor: 1/3" color CMOS

• JPEG Resolution: 1280 (H) × 960 (V)

• Video Resolution: 640 (H) × 480 (V)

• Frame Rate: Up to 30 snapshots/s

• Sensor Sensitivity: 5.6 V/lux-sec (550 nm) / 1.9 V/lux-sec (550 nm)

• View Angle: 135° (H), 109° (V)

• Infrared Light: Yes

Video Stream

• Protocols: RTP/RTSP/HTTP

• Codecs: H.265, H.263+, H.264, MPEG-4, M-JPEG

• IP Camera Function: Yes, ONVIF v2.4 profile S compatible

Interface

• Power Supply: 12 V / 2 A DC or PoE

• PoE: IEEE 802.3af (Class 0 – 12.95 W)

• LAN: 10/100BASE-TX with Auto-MDIX, RJ-45

• Recommended Cabling: Cat-5e or higher

• Passive Switch: NO/NC contacts, max. 30 V/1A AC/DC

• Active Switch Output: 9 V up to 13 V DC depending on power supply, max. 700 mA

RFID Card Reader

• Supported Frequencies:

  • 125 kHz: EM4100, EM4102, HID Proximity

  • 13.56 MHz: ISO14443A, ISO14443B, ISO15693, NFC support

• Supported Cards:

  • Reads UID (CSN)

  • Reads PACS ID (iCLASS SIO-enabled cards, only secured cards)

Mechanical Properties

• Material: Robust aluminium casting

• Operating Temperature: -40°F to 131°F

• Storage Temperature: -40°F to 158°F

• Operating Relative Humidity: 10% – 95% (non-condensing)

• Dimensions:

  • Device only: 8.543 × 4.291 × 3.268 in

  • With frame: 9.528 × 5.354 × 3.268 in

• Weight:

  • Net: 4.409 lb

  • Gross: 5.511 lb

• Covering Level: IP69K and IK10
